Mature Product
Vertical Shaft Drive Type Core Drilling Rig
The vertical shaft core drilling rig transmits power to the drill pipe through the vertical shaft gearbox. Its classic and reliable structure makes it the most widely used drilling rig type in solid mineral exploration. Wireline core retrieving technology reduces auxiliary time and improves core sample recovery rate.
Product Overview
The vertical shaft core drilling rig is a classic machine type in the field of solid mineral exploration. It transmits power from the engine or motor through the speed change gearbox to the vertical shaft, which then drives the main drive shaft and drill string rotation to achieve drilling operations.
This machine paired with wireline core retrieving technology can retrieve the inner pipe assembly from inside the drill pipe using a cable without removing the drill string, quickly obtaining core samples. This significantly reduces auxiliary time and the number of trips, making it the standard configuration for gold, copper, uranium and other solid mineral exploration projects.
Wireline Core Retrieving - High Efficiency
Retrieve core without removing drill string, reducing auxiliary time by over 50%, with high core sample recovery rate
Classic & Reliable Structure
Vertical shaft transmission structure proven over decades, high reliability, easy parts availability
Multiple Specifications Available
Supports BQ, NQ, HQ and various drill string specifications, suitable for different depths and formation requirements
Easy Maintenance
Simple structure, easy repairs, manageable maintenance costs for field operations
Mature Products in This Series
XY-5A Core Drilling Rig
Deepened vertical shaft type, 1800m BQ drilling, 72kW high power, deep solid mineral exploration.
View Details →

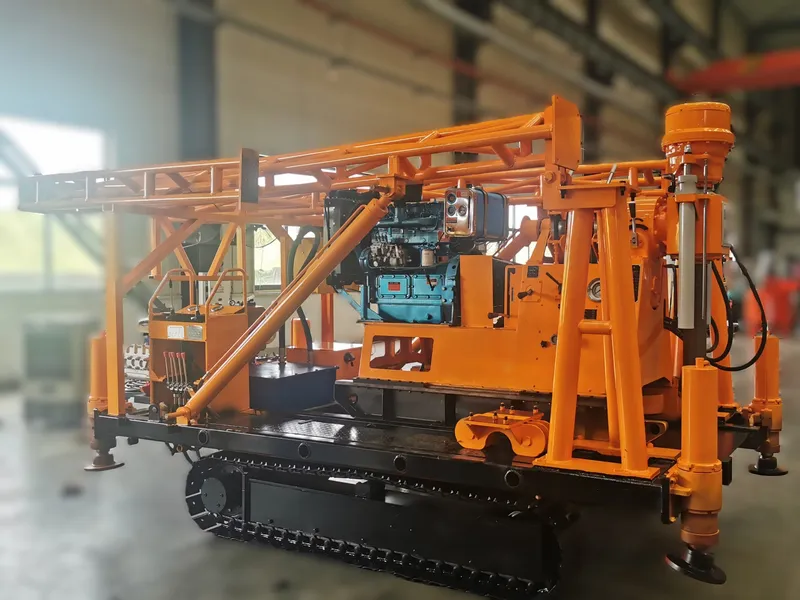

XY-2 Crawler-mounted Core Drilling Rig
Classic vertical shaft rig for medium-shallow holes, 640m wireline core retrieving, crawler self-propelled, suitable for mountainous and water-network areas.
View Details →
